COSMOS 10000PLUS PERFECT BINDING LINE
product-img

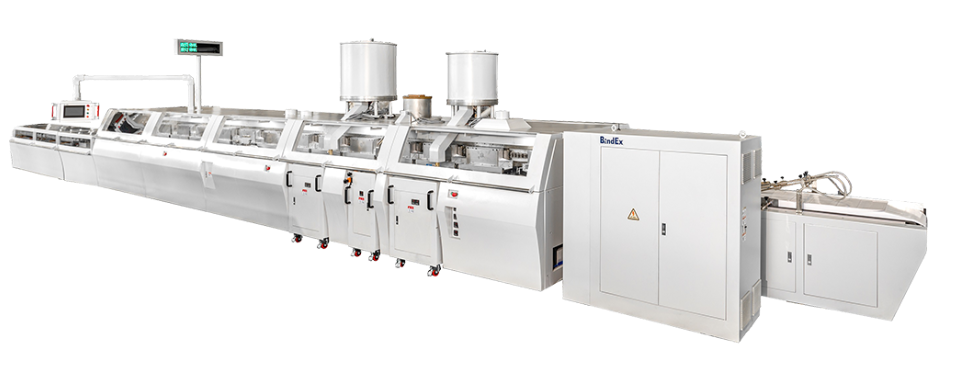

COSMOS 10000PLUS PERFECT BINDING LINE

COSMOS 10000PLUS is a cost-effective perfect binding line developed by BindEx Machinery to meet the requirements of large-scale book and magazine and mass production printing enterprises .

Performance characteristics:

  • Interactive touch screen,Stepless-speed regulation,PLC program control
  • The frame adopts integral casting, which is more durable
  • Whirlwind double milling system
  • Glue pot layout adopts bottomglue- side glue - bottom glue structure.
  • Double nipping device,be better to the processing and production of thick cover books.
  • Stream cover feederrealize non-stop continuous paper feeding; cover guides on the cover feeder,according to the actual production of fine tuning without stopping.
  • Option:BindExCloud Platform
SPECIFICATION
Book clamp number 28
Binding length 140-450mm
Binding width 110-300mm
Cover length 140-450mm
Cover width 223-635mm
Binding thickness 3-50mm
Main power 55kw
Mechanical speed 10000cycles/h
Net weight 10000kg
Overall dimensions(L×W×H) 13220*2100*2520mm
